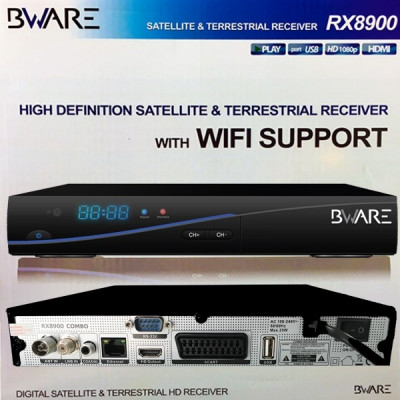

Bware RX8900 Combo

Bware RX8900 Combo HD

Especificaciones técnicas:

1. Tuner & Demodulator
Input Frequency Range - 950MHz-2150MHz
RF Input Signal Level - 64 dBm ~ -25 dBm
RF Impedance - 75 Ω
RF Bandwith - 55 MHz/8 MHz (Under 5 Msps)
LNB Power 13/18 DC, +/-5%, 0.5A max
LNB Tone Switch 22 KHz +/- 2KHz, 0.64V p-p +/0.15V
DisEqC Control - V1.0, V1.2, Tone burst A/B
Demodulation - QPSK
Symbol Rate - 1 ~ 45 Msps/SCPC, MCPC

2. MPEG
Transport Stream - MPEG-4, H.264, MPEG-2 ISO/IEC
13818 Transport Stream Specifications
Input Rate Max. 120 Mbit/s
Video MPEG-2 MP@ML- MPEG-1/2/4
Audio MPEG-1/2 Audio Layer1 or Layer2, MPEG2 MPEG4 AAC and MPEG4 AAC-HE(AAC+), Dolby Digital (AC-3), MP3, WMA
Aspect Ratio - 4:3, 16:9, Auto Detect
Video Resolution - 576i, 576p, 720p, 1080i
Audio Mode - Stereo, Dual Channel, Joint Stereo, Mono ,AC3
Audio Sampling Frequency 32,44.1/48KHz

3. Connector
LNB IF input - F type, IEC 169-24 Female
HDMI HD Video/Audio, Ver 1.2, Type A
RCA AUDIO L/R, CVBS, 0/12V

4.Power Supply
Input Voltage 100-240 v ~ 50/60Hz 0.6 A
Power Consumption Max 25W
Standby Power Max 1W
Weight Appr. 100 GR
Operating Temperature 0o-40o
Storage Temperature -40o - 60o

5.Main System
CPU 667 MHz
Flash (NAND FLASH) 8 MByte (64 Mbit)
S-Dram (DDR I) 2G (128 Mbit)
2 Entradas USB USB 2.0

Contenido del paquete:

• Receptor Bware RX89000 COMBO Full HD
• 1x control remoto
• 2 pilas AAA
• Manual de Instrucciones
